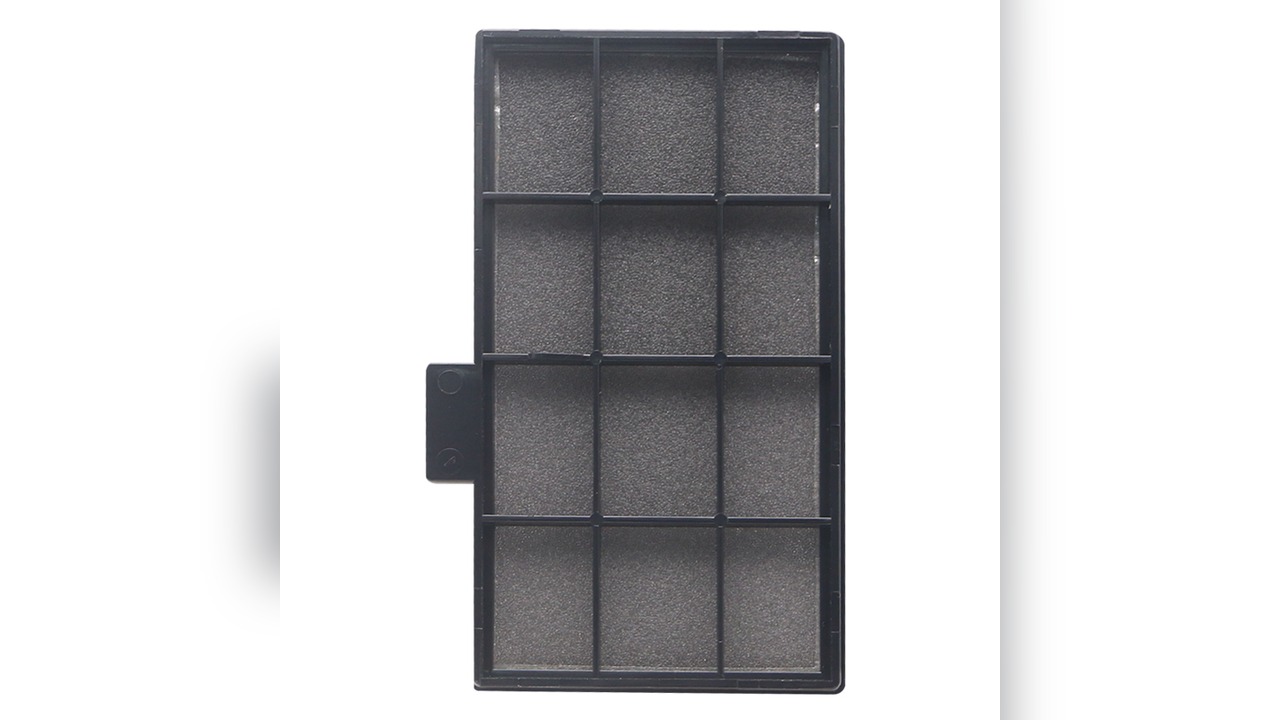

Epson ELPAF32 Projector Air Filter for 82 Models, OEM Replacement

ELPAF32 is the OEM air filter model used in Epson projectors, covering 82 models. This article presents the filter specifications, replacement indicators, model compatibility list, and pre-replacement checks all in one place.

1. Air Filter Specifications

The above specifications are sourced from the Zorsika product database. Confirm the dimensions and clip design against the actual product and OEM part number.

2. When to Replace It and Whether It Can Be Washed

The air filter is a consumable, but it does not fail with any obvious warning and is often noticed only incidentally. If any of the following signs appears, inspect the filter:

• The image becomes noticeably dimmer and the colors look dull: A blocked intake raises the internal temperature, causing the projector to reduce its power automatically to protect itself. This makes the image appear noticeably less bright.
• The projector frequently displays temperature or filter warnings: Most models track filter usage time and display a prompt when the interval expires. Even if no prompt appears, a fan that continuously runs at high speed and generates more noise generally indicates an obstructed airflow path.
• The filter is blackened and no longer lets light pass through: Remove it and hold it up to the light. If light transmission has clearly declined or the surface has become clogged, cleaning is unlikely to restore performance, and the filter should be replaced.

Cleaning Guidelines

Light dust accumulation can be cleaned: First remove loose dust with a soft-bristled brush or low-pressure air blower, then backflush the filter with clean water from the exhaust side. Let it air-dry completely until no water remains before reinstalling it. Observe three precautions—do not scrub the filter media vigorously, do not use cleaning agents, and never reinstall it while wet. Once the media is loosened by scrubbing or damaged by washing and the pores enlarge, it is effectively no filter at all, allowing dust to enter the optical path.

The environment determines the replacement frequency. In dust-prone locations such as classrooms, construction sites, and street-facing showrooms, inspection intervals should be significantly shortened; inspection can be less frequent in temperature- and humidity-controlled meeting rooms. Rather than relying on a fixed schedule, check light transmission whenever you clean the filter and make a judgment based on its actual condition, which is more reliable.

3. Compatible Models (82 Models, Epson)

The following are the compatible projector models verified for ELPAF32 in Epson projectors:

EB-C10SE，EB-C15S，EB-C215S，EB-C240X，EB-C25XE，EB-C30X，EB-C340X，EB-C40X，EB-C55W，CB-S03+，CB-X03，CB-X18，CB-X24，CB-W03，CB-S18/S18+，CB-X25，CB-X22，CB-S03，CH-TW5200，CB-965，CB-945，CB-950W，CB-955W，CB-97，CB-X21，CB-X20，CB-X17，CB-W18，CB-W15，CB-X05E，CB-X05，CB-W05，CB-U05，CB-S41，CB-X41，CB-W42，CB-U42，CB-X39，CB-108，CB-109W，CH-TW650，CB-S05，CB-S05E，CH-TW610，CH-TW750，CH-TW740，CB-E01E，CB-E01，CB-X06，CB-W06，CB-FH06，CB-E10，CB-X51，CB-W52，CB-X06E，CB-X49，CB-X36，CB-X04，CB-X31，CB-S04，CB-X31E，CB-S04E，CB-965H，CB-S31，CB-X27，CB-945H，CB-97H，CH-TW5300，CH-TW5350，CH-TW5210，CB-X29，CB-W04，CB-W32，CB-U04，CB-U32，CB-955WH，CB-950WH，CB-X30，CB-98H，EB-C28SH，EB-C26SH，EB-C26XE

This list contains verified models and does not represent the full range. Projectors from the same generation often share the same filter specification. For models not listed, send us the projector nameplate and photos of the original filter for confirmation.

4. Three Checks Before Replacement

1. Verify the model: The OEM part number should match ELPAF32. Some Epson models use different filter configurations with the same chassis, and filters with different part numbers are not interchangeable.
2. Verify the dimensions and thickness: A difference of just a millimeter or two in length or width may prevent a proper seal. If it is too thick, the cover will not close; if it is too thin, it will leak air. Use measurements taken from the original filter as the standard, and do not order solely by projector model name.
3. Determine whether it is a standalone filter or a framed assembly: Some projector filters have a plastic frame or clips, while others consist solely of filter media that must be installed in the existing frame. A filter with the wrong design will not fit. Taking a photo during disassembly is the safest way to confirm the correct format.

5. Choosing Between Zorsika, OEM, and Other Replacement Air Filters

Zorsika projector air filters are manufactured to OEM filter media specifications. Pore size, thickness, and air resistance are matched item by item, while dimensions and clips are tooled to match the OEM design, providing a tight fit that prevents dust leakage.

OEM parts are the most reliable option, but the tradeoffs are a higher overall cost and lead times that depend on the sales channel. Common problems with low-cost alternatives include uneven pore sizes and corners that do not fit properly. Once installed, they either leak dust or obstruct airflow. If dust enters the optical path, the lamp and LCD panel ultimately bear the cost.

6. Frequently Asked Questions

Q: My projector is not among the 82 models listed. Is ELPAF32 compatible?

A: The list contains verified models and does not represent the full range. Epson products from the same generation often share the same filter specification. Send the projector nameplate and photos of the original filter to Zorsika Technical Support, and we can help confirm whether it is compatible.

Q: How often should a projector air filter be replaced?

A: There is no fixed number of months. It depends on the dust concentration in the environment and the projector's operating time. Judge the replacement need by the actual condition: noticeably reduced light transmission, surface clumping, a dimmer image, or a filter warning message. Inspection intervals should be shortened in dust-prone locations.

Q: Can the air filter be washed and reused?

A: Light dust accumulation can be cleaned: Remove loose dust with a soft-bristled brush or low-pressure air blower, then backflush the filter with clean water from the exhaust side. Let it air-dry completely before reinstalling it. Do not scrub the filter media, use cleaning agents, or reinstall it while wet. If the media is already loosened, damaged, or clogged, cleaning will not restore it, and the filter must be replaced.

Q: Can I skip the air filter to save money?

A: No. The air filter blocks dust. Once dust enters the optical path, it can settle on the LCD panel and color wheel, causing permanent dark spots and color defects. Cleaning requires projector disassembly and costs far more than the filter itself.

Q: Why choose a Zorsika air filter instead of a cheaper one?

A: Zorsika air filters are manufactured to OEM filter media specifications, with pore size and air resistance parameters that match the originals. Every batch undergoes pressure-drop testing before shipment. Compared with OEM filters, they provide more stable supply and better overall value. Compared with other alternatives, they ensure filtration precision and a proper fit.

Q: How do I choose between OEM, Zorsika, and other alternatives?

A: The key to an air filter is balancing filtration precision and air resistance. Zorsika air filters (see the model in the specifications table above) use filter media with the same specifications as the OEM parts. Pore size, thickness, and air resistance are matched item by item to the OEM parameters, ensuring both effective dust protection and adequate airflow. Other alternative filters often have uneven pore sizes and corners that do not fit properly. Once installed, they either leak dust or obstruct airflow, resulting in greater lamp consumption over the long term. Choose Zorsika for peace of mind and lower costs.
