In the world of large-venue projection, the demand for reliable, high-performance optical components has never been greater. Events, exhibitions, immersive installations, and permanent fixed installations all require projection systems that deliver stunning image quality, consistent brightness, and precise control over every pixel on screen. At the heart of any projection system lies the lens — the single most critical optical element that determines how light is shaped, focused, and delivered to the screen. When it comes to pairing a premium lens with a powerhouse projector like the Sharp XP-A175U, Zorsika has engineered a solution that not only matches but exceeds expectations.
This article explores how the Zorsika ZN3202G lens is specifically designed to complement the Sharp XP-A175U, delivering superior optical performance, exceptional light efficiency, and remarkable flexibility in installation — all while offering outstanding value for system integrators and end users alike.
Understanding the Sharp XP-A175U: A Projection Powerhouse

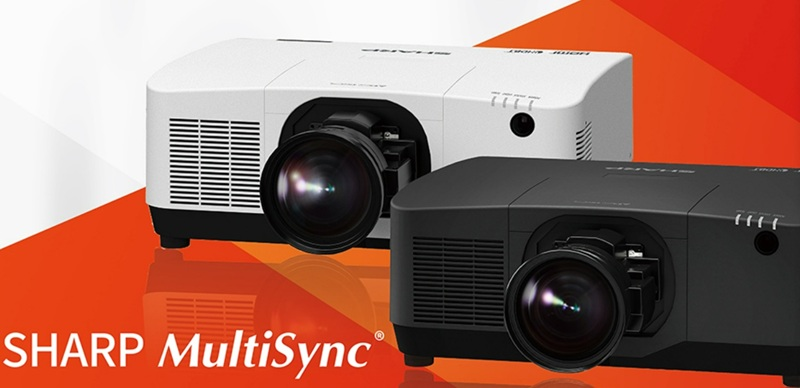

Before diving into the lens pairing, it is essential to understand what makes the Sharp XP-A175U such a formidable projector in the professional market. Built on a 3LCD display technology with a 1.0-inch chip, the XP-A175U delivers a WUXGA resolution of 1920×1200. This resolution provides ample pixel density for large-format displays, ensuring sharp text, detailed graphics, and smooth gradients even on screens exceeding 300 inches.
The standout specification, however, is the brightness. At 17,000 lumens, the XP-A175U is designed for the most demanding environments — massive auditoriums, outdoor events, theme park attractions, and large-scale corporate venues where ambient light cannot be fully controlled. At this brightness level, every fraction of light loss in the optical path becomes critically important. A lens that absorbs or scatters even a small percentage of light can result in a noticeable drop in on-screen brightness, which directly impacts image quality and audience experience.
The XP-A175U offers a range of native Sharp lens options, from the XP-51ZL with a throw ratio of 0.53:1–0.65:1 to the XP-56ZL with an extended throw ratio of 3.95:1–7.51:1. The native lens focal length ranges from 27.7mm to 44.9mm, with an aperture range of F1.8 to F2.24. These lenses are engineered to work seamlessly with the projector's optical engine, but they also come with a premium price tag that can significantly inflate the total cost of a projection system — especially when multiple units are deployed.
This is precisely where Zorsika steps in.
Introducing the Zorsika ZN3202G: Engineered for the XP-A175U
Zorsika, a professional supplier of projection accessories, has developed the ZN3202G lens (product code ZE3202) as a purpose-built alternative for the Sharp XP-A175U platform (PA1705). This lens is not a generic replacement. It is a carefully calculated optical solution that respects the projector's native specifications while delivering measurable improvements in key performance areas.
Let us break down the critical specifications and what they mean in real-world application.
Optical Design: All-Glass Construction
The ZN3202G features an all-glass lens design. In professional projection, all-glass optics are preferred over hybrid or plastic-element designs for several important reasons. Glass elements maintain their optical properties over time and under thermal stress far better than plastic elements. In high-brightness applications like the XP-A175U, where the light source generates significant heat, all-glass construction ensures that the lens does not suffer from thermal expansion, focal shift, or color fringing over extended operation.
This translates to consistent image quality from the first hour of operation to the thousandth — a critical requirement for rental companies, event producers, and venues that run projections for long durations.
Aperture and Focal Length: Perfectly Matched
The ZN3202G offers an aperture range of F1.8 to F2.3 across a focal length of 27.3mm to 37.0mm. This closely mirrors the native XP-A175U lens specifications (F1.8–F2.24, 27.7–44.9mm), ensuring full compatibility with the projector's light engine. The slightly extended focal length range actually provides greater versatility in throw distance, allowing installers to achieve a wider variety of screen sizes and placement options without needing to swap lenses.
Throw Ratio: 1.19:1 to 1.62:1
The throw ratio of the ZN3202G is 1.19:1 to 1.62:1. This places it in the short-to-medium throw category, making it ideal for venues where the projector must be mounted relatively close to the screen — such as ceiling-mounted installations in conference halls, stages, or exhibition booths. For a WUXGA projector with 17,000 lumens, this throw ratio enables large image sizes (from 60 inches up to 500 inches) while maintaining high brightness on screen.
To put this in perspective, at a throw distance of approximately 5 meters, the ZN3202G can produce an image exceeding 300 inches diagonal — more than sufficient for most large-venue applications.
Light Efficiency: 106.89% Compared to the Original Lens
This is perhaps the most compelling specification in the ZN3202G's profile. Zorsika measures the light efficiency of the ZN3202G at 106.89% relative to the Sharp original lens. In practical terms, this means the Zorsika lens delivers more usable light to the screen than the factory lens it replaces.
In a 17,000-lumen system, even a 5% gain in light efficiency translates to an additional 850 lumens reaching the screen. That is the difference between a vibrant, punchy image in a moderately lit environment and one that struggles to compete with ambient light. For system integrators, this means they can either reduce the number of projectors needed for a given venue (saving on equipment and labor costs) or achieve a brighter, more impactful image with the same hardware.
This level of optical efficiency is achieved through advanced multi-coating technology and precision-ground glass elements that minimize reflection and absorption losses at every surface.
MTF Performance: Greater Than 60% at 67 lp/mm
Modulation Transfer Function (MTF) is the gold standard for measuring lens sharpness and contrast reproduction. An MTF value above 60% at 67 line pairs per millimeter indicates that the ZN3202G preserves fine detail and edge contrast exceptionally well. For content involving text, CAD drawings, architectural renderings, or any application where sharpness is paramount, this MTF performance ensures that the image remains crisp from center to edge.
Zorsika's commitment to high MTF across the entire image field is a direct reflection of their philosophy: every lens they produce must deliver professional-grade color fidelity, minimal optical loss, and support for 4K-level resolution and high contrast — even when paired with WUXGA projectors like the XP-A175U.
Lens Shift: ±30mm Vertical, ±9mm Horizontal
Installation flexibility is a major concern in professional AV. The ZN3202G provides ±30mm of vertical lens shift and ±9mm of horizontal lens shift. This allows the projector to be mounted off-center — above, below, or to the side of the screen — without requiring keystone correction, which degrades image quality.
In venues where ceiling mounting points are fixed or where the projector must be positioned behind an audience or within a tight equipment rack, this level of lens shift is invaluable. It eliminates the need for costly motorized mounts or custom rigging, saving both time and money during installation.
Compact Form Factor: 15cm Outgoing Length
At only 15cm in outgoing length from the projector body, the ZN3202G maintains a slim profile that is compatible with most standard projection mounts and ceiling brackets. This compact design also reduces the moment arm on the mount, improving mechanical stability and reducing vibration — another subtle but important factor in maintaining image sharpness during operation.
Why Zorsika? The Bigger Picture
Zorsika has built its reputation as a professional projection accessory supplier by focusing on three core principles: efficiency, durability, and value. Every lens they produce undergoes rigorous optical testing to ensure it meets or exceeds the performance of original equipment manufacturer (OEM) lenses. Their extended warranty programs give partners peace of mind, knowing that their investment is protected over the long term.
The ZN3202G is a prime example of this philosophy in action. It delivers 106.89% light efficiency compared to the original Sharp lens, all-glass construction for long-term reliability, MTF performance above 60% at 67 lp/mm for exceptional sharpness, and generous lens shift for installation flexibility — all at a fraction of the cost of the OEM alternative.
For rental companies managing large inventories, for system integrators bidding on competitive projects, and for venue operators looking to maximize their projection investment, Zorsika provides a lens solution that makes financial sense without compromising on performance.
Application Scenarios
The combination of the Sharp XP-A175U and the Zorsika ZN3202G is ideally suited for the following applications:
Large-Scale Events and Concerts: With 17,000 lumens and a throw ratio that supports screens up to 500 inches, this pairing can fill massive venues with vivid, sharp imagery — from live event visuals to promotional content.
Museums and Immersive Exhibitions: The high MTF and all-glass construction ensure that fine details in artwork, artifacts, and digital installations are reproduced with exceptional accuracy and color fidelity.
Corporate AV and Conference Centers: The lens shift capability and compact form factor make installation straightforward, while the superior light efficiency ensures bright, clear presentations even in rooms with windows.
Theme Parks and Attractions: The durability of all-glass optics and the extended warranty from Zorsika make this combination a reliable choice for installations that run for many hours per day, year after year.
Conclusion
The Sharp XP-A175U is one of the most capable projectors in its class, and the Zorsika ZN3202G lens is engineered to unlock its full potential. With superior light efficiency, professional-grade optical performance, flexible installation options, and a compact, durable design, the ZN3202G represents a smart, cost-effective alternative to OEM lenses — without sacrificing a single lumen of brightness or a single line of resolution.
Zorsika continues to innovate in projection optics, delivering solutions that help partners succeed in an increasingly competitive market. The ZN3202G paired with the XP-A175U is not just a lens replacement — it is an upgrade.
