In the professional audio-visual industry, the pairing between a projector and its lens is just as critical as the projector itself. The Sharp XR-A201U, with its impressive 20,000 lumens of brightness, WUXGA resolution, and dependable 3LCD technology, has established itself as a strong contender for large-venue projection. However, even a projector of this caliber requires a high-quality lens to unlock its full potential. This is where Zorsika comes in. As a professional projection accessory supplier, Zorsika has developed the ZN3202G lens — a cost-effective alternative for the Sharp XR-A201U that maintains and even enhances optical performance while offering greater flexibility for integrators and end users.

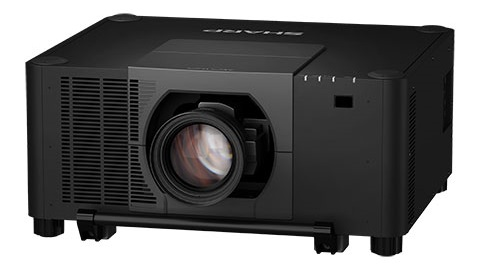

The Sharp XR-A201U: A High-Performance Projector Built for Demanding Environments
To appreciate the value of the Zorsika ZN3202G, it helps to first understand the projector it is designed to serve. The Sharp XR-A201U employs 3LCD display technology, which delivers bright, vivid, and color-accurate images. Compared to single-chip DLP systems, 3LCD technology offers superior color brightness — a significant advantage for corporate presentations, museum exhibitions, and live events where color fidelity matters.
The projector features a 1.0-inch chip that outputs WUXGA resolution (1920 × 1200). While this is not native 4K, the optical engine supports 4K signal input, leaving room for future upgrades. With 20,000 lumens of brightness, the XR-A201U can handle ambient light with ease, making it suitable for large conference halls, auditoriums, and even outdoor events.
The lens system is a key part of the XR-A201U's identity. The native lens offers a focal length range of 27.7–44.9mm, with throw ratios spanning from 0.53 to 7.51 depending on the model variant (NP51ZL through NP56ZL). The aperture range is F1.8 to F2.24, which allows the projector to maintain image brightness and contrast across varying lighting conditions. While the native Sharp lens is competent, it does not always meet every specific need. Users sometimes find limitations in color reproduction, edge-to-edge sharpness, or installation flexibility. This is where a specialized third-party lens from a supplier like Zorsika becomes a meaningful upgrade.
Introducing the Zorsika ZN3202G: A Professional Lens Designed for High-Brightness Projection
The Zorsika ZN3202G (product code ZE3202) is engineered specifically to pair with the Sharp XR-A201U and similar high-brightness projectors. Zorsika, as a professional projection accessory supplier, has incorporated market-driven innovation into every aspect of this lens design.
Here are the key specifications:
- Aperture: F1.8 – 2.3
- Focal Length: 27.3 – 37.0mm
- Lens Type: All glass
- Screen Size Range: 60" – 500"
- MTF: >60% @ 67lp/mm
- Platform Compatibility: PA1705
- Chip Support: 1.0 inch
- Resolution: WUXGA
- Throw Ratio: 1.19 – 1.62:1
- Vertical Lens Shift: ±30%
- Horizontal Lens Shift: ±9%
- Light Efficiency (vs. original lens): 106.89%
- Lens Protrusion Length: 15cm
These numbers tell a clear story: the ZN3202G is not just compatible with the XR-A201U — it is designed to outperform the original lens in several measurable ways.
All-Glass Optical Design: Thermal Stability and Long-Term Consistency
One of the most notable design choices in the ZN3202G is its all-glass lens construction. Many lenses on the market use a combination of glass and plastic elements to reduce costs. However, plastic elements are prone to thermal expansion, which can cause subtle focus shifts and image degradation over time — especially in high-brightness projectors that generate significant heat.
For the XR-A201U, which pushes 20,000 lumens, this matters a great deal. The all-glass construction ensures that the ZN3202G maintains optical consistency even during extended operation. Zorsika's decision to use all-glass elements reflects a commitment to durability and reliability that goes beyond the initial purchase.
Additionally, glass elements transmit light more efficiently than plastic. Combined with the ZN3202G's stated light efficiency of 106.89% compared to the original lens, this means users get a brighter image from the same projector settings — or the same brightness at reduced lamp power. For installations where operating costs are a concern, this efficiency gain adds up over time.
MTF Performance: Sharpness from Edge to Edge
MTF (Modulation Transfer Function) is one of the most important metrics for evaluating a lens's ability to reproduce fine detail. The ZN3202G achieves an MTF of greater than 60% at 67 line pairs per millimeter. For a WUXGA projector, this is a strong result.
In practical terms, this means that text, charts, and fine graphics remain sharp and well-defined even at the edges of a 500-inch image. Many lenses perform well in the center but lose contrast and clarity toward the periphery. The ZN3202G delivers high contrast and resolution across the entire frame. For presentations, exhibitions, or control room applications where detail matters at every point on a large screen, this is a significant advantage.
Zorsika has consistently delivered lenses with high color reproduction, low light loss, 4K resolution support, and high contrast — and the ZN3202G continues that standard. The scientific structural design also ensures that this optical performance is paired with a straightforward installation process.
Throw Ratio and Lens Shift: Installation Flexibility
The ZN3202G offers a throw ratio of 1.19–1.62:1, which overlaps well with the Sharp XR-A201U's native zoom range but adds meaningful installation flexibility through its lens shift capabilities. With ±30% vertical shift and ±9% horizontal shift, installers can position the image precisely on the screen without resorting to digital keystone correction.
Why does this matter? Keystone correction works by digitally cropping and reshaping the image, which reduces effective resolution and can degrade perceived sharpness. For a projector that already outputs WUXGA, preserving every pixel counts. Optical lens shift allows the image to be repositioned without sacrificing a single pixel of resolution — a hallmark of professional-grade installation.
The 15cm lens protrusion length is also worth noting. This compact design reduces the risk of the lens interfering with ceiling structures, ventilation ducts, or other equipment in tight mounting scenarios. In many venues, projectors must be installed close to the ceiling, and a shorter protrusion length makes the difference between a clean installation and a frustrating one.
Color Reproduction: Unleashing the 3LCD Advantage
The Sharp XR-A201U's 3LCD technology is known for excellent color accuracy. But that advantage can be undermined if the lens introduces chromatic aberration or color fringing. The ZN3202G's all-glass construction and high MTF performance minimize color shift, ensuring that the red, green, and blue channels align precisely across the entire image.
This is particularly important for corporate presentations, museum exhibitions, medical imaging, and any application where color accuracy is non-negotiable. The lens does not introduce optical artifacts that could distort the 3LCD engine's natural color strength.
Moreover, while the XR-A201U's native resolution is WUXGA, its optical path supports 4K signal input. The ZN3202G's high optical quality ensures that these additional details are preserved, not lost to a weak lens. This means that even if a user is currently working with WUXGA content, the lens is already future-ready for a potential upgrade to 4K — protecting the investment.
Application Scenarios: Where the ZN3202G Shines
The combination of the Zorsika ZN3202G and the Sharp XR-A201U is well-suited for a variety of professional scenarios:
Corporate Events and Conferences: With 20,000 lumens of brightness and a high-MTF lens, presentations in large halls appear crisp and color-accurate, with even small text readable from the back row.
Immersive Exhibitions: The 60" to 500" projection range allows museums and galleries to use a single projector for everything from informational panels to full-wall immersive displays. The all-glass lens ensures that artwork colors are reproduced faithfully, even at large scale.
Live Events and Performances: The all-glass construction handles the demanding conditions of live events, while the lens shift capabilities allow for fast, flexible setup without compromising image quality. Technical teams can mount and align the system quickly, even under tight deadlines.
Educational Institutions: For universities and schools that need clear visuals in large lecture halls, the ZN3202G's color accuracy and edge-to-edge sharpness ensure that every student sees the same high-quality image, regardless of where they are sitting.
Command and Control Centers: High brightness combined with precise optics allows operators to read data and maps on large video walls without blur or color distortion — critical for time-sensitive decision-making.
Why Choose Zorsika: Value That Goes Beyond the Product
Zorsika is not just a lens supplier — it is a partner in professional projection systems. The company is dedicated to providing partners with efficient, long-warranty, high-quality, and cost-effective projection accessories, and the ZN3202G embodies this philosophy.
Choosing Zorsika means:
- Competitive Pricing: Significant cost savings compared to the original lens, without compromising optical performance. This helps projects stay within budget.
- Extended Warranty: Zorsika provides extended warranty coverage on its lenses, reducing the total cost of ownership for high-value installations. In professional AV, downtime means lost revenue — extended warranty brings peace of mind.
- Technical Support: A dedicated team assists with lens selection and installation, ensuring seamless compatibility with the Sharp XR-A201U and other supported projectors.
- Consistent Quality: Every Zorsika lens undergoes rigorous optical testing before shipping, ensuring that MTF, transmission, and color performance meet the published specifications.
Every lens Zorsika delivers features high color reproduction, low light loss, 4K resolution support, and high contrast — combined with a scientifically designed structure that makes installation straightforward. The ZN3202G is a direct reflection of this philosophy: not just a compatible alternative for the Sharp XR-A201U, but a meaningful optical upgrade.
Installation and Integration: Designed for Professionals
Zorsika designed the ZN3202G with installation in mind. The lens is compatible with the PA1705 platform, which integrates seamlessly with the Sharp XR-A201U. The scientific structural design translates into an intuitive installation process — the lens can be aligned and secured quickly, without complex tools or extensive adjustment.
The ±30% vertical shift and ±9% horizontal shift provide generous adjustment range during setup. Installers can rough-position the projector first, then fine-tune the image placement using optical shift — without moving the projector itself. This flexibility is invaluable in installations where mounting conditions are less than ideal.
The 15cm protrusion length means the lens sits close to the projector body, reducing the risk of accidental bumps or damage. In rental scenarios where projectors may be moved or repositioned frequently, this practical design choice pays dividends.
Total Cost of Ownership: A Smart Investment Decision
When evaluating a projection lens, many buyers focus on the upfront purchase price. But total cost of ownership (TCO) also includes maintenance, energy consumption, and lifespan.
The ZN3202G's all-glass construction means a longer service life and lower maintenance needs. There are no plastic elements to age, yellow, or degrade over time — the lens maintains its optical performance for years. The 106.89% light efficiency translates to lower energy consumption, and for projectors that run for many hours each day, this difference accumulates into meaningful savings over time.
Combined with Zorsika's extended warranty, the ZN3202G's total cost of ownership is likely lower than cheaper alternatives that require more frequent replacement or servicing. For AV companies and venues managing multiple projectors, this predictability is valuable in itself.
Conclusion: Matching the Right Lens to the Sharp XR-A201U
The Sharp XR-A201U is a capable projector, but it reaches its full potential only when paired with the right lens. The Zorsika ZN3202G, with its all-glass construction, superior light efficiency, strong MTF performance, and practical lens shift capabilities, represents a compelling alternative that enhances rather than compromises the system.
Whether you are upgrading an existing installation, managing costs on a new project, or simply seeking better optical performance than the original lens provides, the Zorsika ZN3202G deserves serious consideration. It reflects what Zorsika stands for: efficient, long-warranty, high-quality, and cost-effective projection accessories for the professional AV market.
For system integrators and AV professionals, choosing Zorsika is not just about choosing a lens — it is about choosing a partner that understands the complexities of projection optics and is committed to delivering reliable results. The ZN3202G and the Sharp XR-A201U together form a system ready for the most demanding applications.
