Model Compatibility List for WE504 (<10K Lumens) (2 Models, with Brightness/Resolution/Zoom Ratio)
The following are verified compatible projector models for WE504 (<10K Lumens) (Christie projectors), with brightness, resolution and zoom ratio for each unit:
| Projector Model | Brightness | Resolution | Zoom Ratio |
|---|---|---|---|
| LWU1260-DPS | 7400 lumens | WUXGA 1920×1200 | • UST lens 0.32:1 • Short throw zoom lens 0.6-0.75:1 • Short throw zoom lens 0.79-1.11 • Zoom lens 1.46-2.95:1• Zoom lens 1.3-3.0:1 • Zoom lens 2.99-5.93:1 • Zoom lens 4.59-7.02:1 |
| LWU860-DPS | 9300 lumens | WUXGA 1920×1200 | • UST lens 0.32:1 • Short throw zoom lens 0.6-0.75:1 • Short throw zoom lens 0.79-1.11 • Zoom lens 1.46-2.95:1• Zoom lens 1.3-3.0:1 • Zoom lens 2.99-5.93:1 • Zoom lens 4.59-7.02:1 |
Note: Brightness, resolution and zoom ratio are sourced from the Zorsika product database (subject to the model nameplate/manual); lens compatibility is based on body interface and optical structure. For models outside this list, please contact Zorsika technical support for confirmation.
Lens Parameter Overview
| Lens Model | WE504（<10K Lumens） |
| Compatible Brand | Christie |
| Compatible Projector Brightness | 7400–9300 lumens |
| Compatible Projector Resolution | WUXGA 1920×1200 |
| Zoom Ratio | • UST lens 0.32:1 • Short throw zoom lens 0.6-0.75:1 • Short throw zoom lens 0.79-1.11 • Zoom lens 1.46-2.95:1• Zoom lens 1.3-3.0:1 • Zoom lens 2.99-5.93:1 • Zoom lens 4.59-7.02:1 |
| Throw Ratio | 0.44-0.54：1 |
| Compatible Panel Size | 0.76 inch |
| Number of Compatible Models | 2 models |
The above parameters are sourced from the Zorsika product database. For complete technical specifications, please contact your sales representative.
Frequently Asked Questions
Q: What if the lens doesn't match the screen size?
A: First confirm the lens mount and optical axis position of your model, then select a lens with the matching throw ratio based on your actual installation distance. If you're unsure, send us your installation distance and screen dimensions and Zorsika technical support will recommend the right option.
Q: My machine is not on the list of 2 models above. Can I use WE504 (<10K Lumens)?
A: The list shows verified models only, not the complete range. Projectors from the same brand and generation often share lens mounts. For peace of mind, send photos of your machine nameplate and original lens to Zorsika technical support for confirmation.
Q: Can the lens replace the OEM one?
A: The lens is the core of the projector optical system, directly determining clarity and color accuracy. Zorsika lenses (models listed in the specifications above) are matched item-by-item against OEM optical parameters (focal length, throw ratio, lens elements), with consistent lens coating processes, delivering sharp imaging without soft edges. Ordinary replacement lenses often use regular glass elements with insufficient coating layers, resulting in visible brightness loss and color shift. For engineering and exhibition applications, Zorsika is the recommended choice.
Q: Why choose Zorsika over OEM?
A: Zorsika lenses are manufactured according to OEM optical specifications, with lens elements, coatings, and throw ratios matched item-by-item, and each unit undergoes resolution testing before shipping. Compared to OEM, we offer shorter lead times and better overall value; compared to other replacement lenses, our optical quality is backed by measurable data.
Q: What is the lens warranty period?
A: All Zorsika projector lenses come with a 12-month warranty. Normal use and non-human damage (such as impacts, water exposure, or unauthorized disassembly) can be handled directly through after-sales service. The warranty period is calculated from the shipping document date.
What Zorsika Lenses Deliver
For engineering lenses like WE504 (<10K Lumens), Zorsika matches OEM optical parameters item-by-item (focal length, throw ratio, lens elements), with consistent lens coating processes, delivering sharp imaging without soft edges, ready for immediate installation.

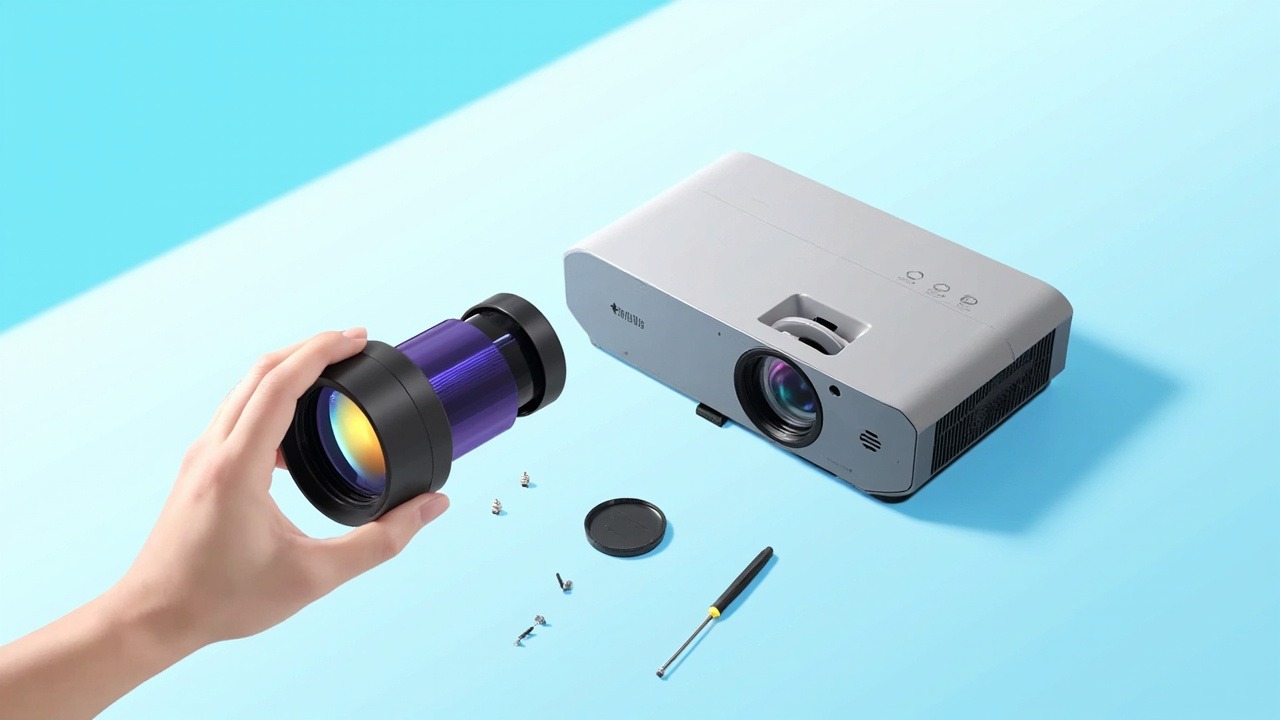

Zorsika equivalent replacement model, compatible with Christie LWU1260-DPS, LWU860-DPS, and 2 other models. Enter WE504 (<10K Lumens) in the search system on the Zorsika website to find the complete model compatibility list.
- Optical Matching: Focal length, throw ratio, and lens elements matched to OEM specifications
- Resolution Testing: Each unit tested before shipping, MTF data available
- Coating Process: Lens coatings at OEM grade, minimizing light loss
- Stable Supply: Supports bulk orders and project procurement
Bottom line: The lens is the optical core—don't gamble with image quality over a price difference. Zorsika projector lenses are manufactured according to OEM specifications, delivering better overall value.
Note: Actual imaging performance depends on the projector condition and installation environment. We recommend testing one unit before placing bulk orders.
What to Watch for When Replacing a Lens
- Power off before replacing: Always shut down and wait for the cooling fan to stop before removing or installing a lens. Avoid working with power on to prevent port damage.
- Don't touch the glass: Fingerprints and oil stains directly affect image quality. Hold the lens by the barrel, not the glass. For dust, use an air blower for gentle cleaning—never wipe with cloth.
- Lock after focusing: After installing, test focus first, then tighten the mounting screws. This prevents long-term loosening that could cause image drift.
- Keep the mount clean: Dust on the bayonet and contacts can cause poor connection. Clean them when replacing the lens for added reliability.
